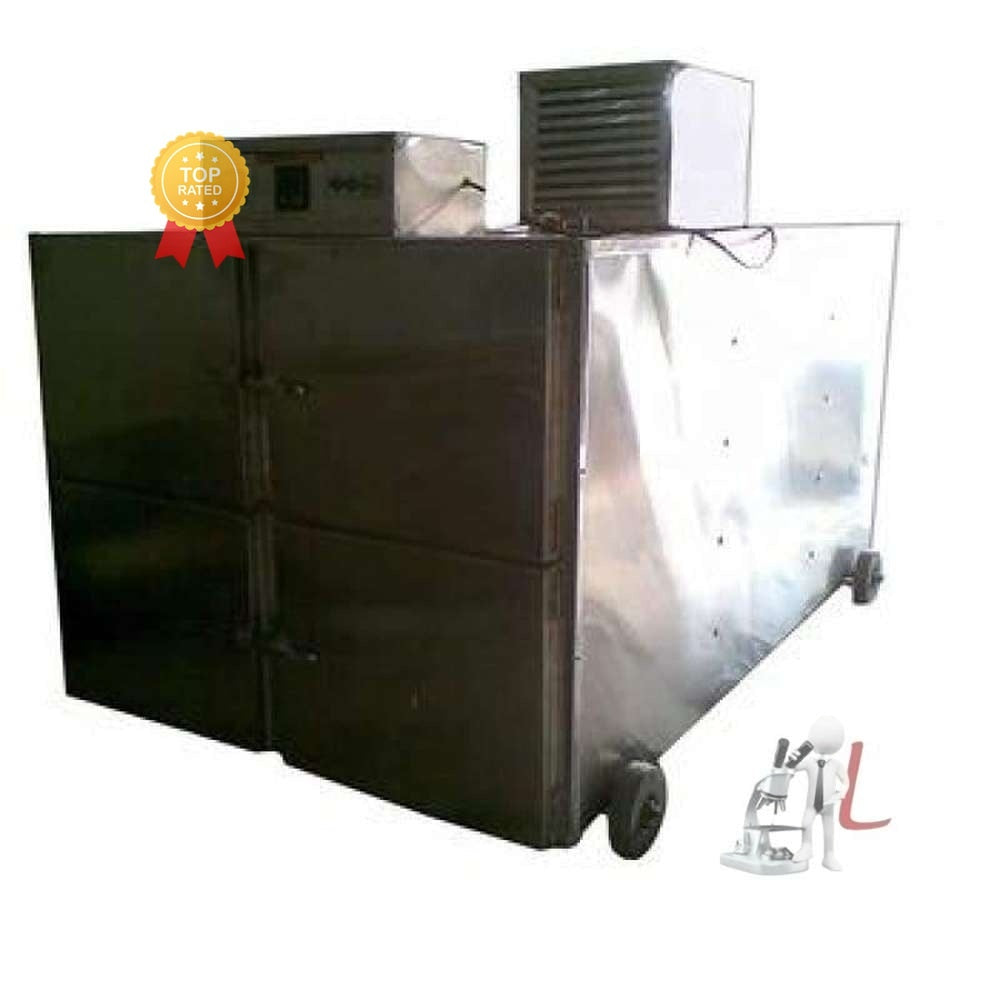

Mortuary Chamber , Four bodies Model MC04

labpro is providing pre-assembled and custom built mortuary cabinets and walk-in mortuary chambers matching to required specifications. All these units deliver reliable performance and hygienic solution for dead body storage. Each cabinet model is equipped with temperature control system with a high contrast digital display for accurate temperature control and recording.

Temperature Range and Control

Available with temperature range of 2°C to 8°C and -10°C to -20°C. However these cabinets can also be made with specific temperature range as required by the customer. For accurate measurement and display of temperature a LED or LCD display is used. These units are equipped with microprocessor based digital control panel which is operated with push buttons. For security and safe working high and low temperature alarm system is used.

Refrigeration System

Equipped with full functional cold storage facility. Refrigeration system is energy efficient, environment friendly, completely airtight and can be roof top or wall mounted. This refrigeration system can also be installed as remote equipment where noise or heat can be a nuisance. The evaporator is equipped with automatic electric defrosting. Featuring noise less compressor and air cooled condenser (water cooled condenser on demand) this cooling system provides full value of money.

Construction

Double walled construction and made of 304 grades corrosion resistant stainless steel. For insulation high pressure-injected polyurethane is used for minimizing thermal loss and meeting the particular requirements of refrigeration in mortuaries.

Doors

Doors are made of painted stainless steel and fitted with external lock for security. These doors are situated in front and allows easy loading of trolleys. These doors feature lining in odorless rubber gasket and anti-condensation resistors.

Internal Lighting

Lighting system comes with waterproof fluorescent ceiling lamps which are fitted with a switch on the control panel.

Accessories

Supplied with a number of optional accessories to provide easy accessibility of machines such as casters, Stabilizer, Loading Trolley, Instrument Trolley, Data Logger and Temperature Chart Recorder etc. If you need Authorization Certificate it will also be provided on request.

Specifications:

Four Body

Mortuary storage system is designed for storing cadaverous under cool condition to prevent decomposition. these are latest developments in mature technology offering vast space saving advantage over the conventional type with greater hygiene useful foe hospitals, and supplying for our dealers.
Double-walled with mild steel/prefabricated panels for outer surface and stainless steel inner chamber with insulation in between. Front opening, hinged insulated doors lined with magnetic gasket, handle and lock arrangements with keys in duplicate for individual dead bodies.
Trays to carry dead bodies with handles at both ends travel on rollers fitted for easy movements. Exterior surface in chemically treated, ant rust coated and duly finished with powder coated paint. To avoid any moving part inside the cabinet, for easier maintenance/ and cleaning refrigeration unit is kept outside the chamber and fixed at rear, temperature of 2.c to 10.c is maintained by hermetically sealed refrigerator compressor unit and is controlled by an automatic electronic solid state digital temperature controller cum indicator temperature controller is mounted on front panel. Provided on front top, along with pilot lamp main switch etc. supplied complete with trays, cord and plug. Suitable to work on 220 V. Single phase 50 Hz ac supply.

Mortuary cabinets are low temperature refrigerated cabinets that are used to keep dead bodies for short or long time. These units are widely used at hospitals, railways, airports, disaster camps and army etc. These cabinets are also called by other names such as morgue freezer, deal body storage refrigerator and mortuary fridge. Usually the temperature of mortuary cabinet remains between 2°C to 5°C but in some cases freezing temperature up to 0°C, -10°C and -15°C can also be designed.

We are mortuary cabinet manufacturers in Delhi, NCR India. Our standard mortuary cabinets are available in one, two, three, four, six and eight bodies; we also made customized units for larger sizes. These cabinets or chambers are energy efficient and also provide excellent cooling performance anywhere they are used.

Mortuary refrigerator temperature remains between 2°C to 5°C which is adjusted through digital PID controller; it displays both SV (set value) and PV (process value). Each chamber has trolley which is made of stainless steel and runs on rollers. Doors are solid and fixed on study SS hinges. Standard models come with external cabinets made of powder coated GI sheet but it can be made of SS 304 if needed as an option. The gap between two walls is filled with 2.5 inches PUF insulation. These cabinets require 220 volts 50Hz power supply to run.

If you want to know mortuary cabinet price, please email us your query or just make a call to us.
