Product Description:
We have gained recognition as an eminent enterprise, devotedly engaged in offering a broad range of Vacuum Pump. Using quality approved material with the assistance of modern techniques, this pump is manufactured under the strict guidance of deft workforce at our well-established production unit. In addition to this, we provide our entire range in various specifications, in order to fulfill the varied requirements of our clients.
Features:
- Industry approved design
- Enhanced durability
- Ruggedness

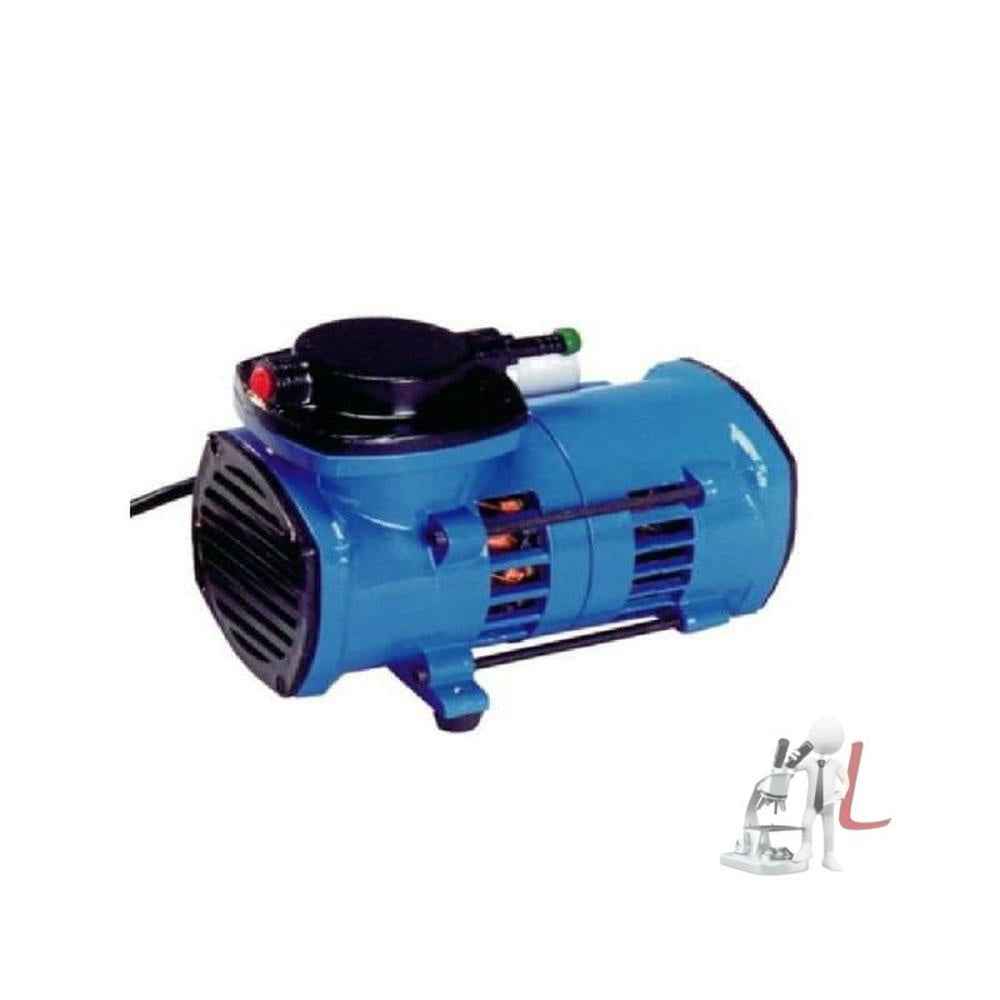

DIAPHRAGM VACUUM PUMPS
We offer 100% oil-free Diaphragm Vacuum Pumps/Compressors. They can be used either as vacuum pumps or oil-free compressors and are designed for delivery of uncontaminated air, gases or va pours. They are suitable for producing oil-free compressed air or vacuum.
ADVANTAGES:
- Diaphragm type - hence no rubbing of parts and negligible wear & tear
- Practically maintenance free.
- No lubrication required, hence oil - free
- Low operational cost of equipment. This results from the modest cost for replacement of diaphragm and valves.
FEATURES:
- Heads are made of aluminum alloy castings
- Diaphragms are made of neoprene rubber or other elastomers depending on applications
- Specially designed motors in single - phase and three-phase constructions
- Pumps are mounted on rubber pads for silent, vibration-free running
- Due to compact design, these pumps are ideal for laboratories and original equipment manufacturers
- Compact, light-in-weight, hence portable
APPLICATIONS:
Pollution Monitoring Equipment, Chemical Analyzers, Laminating press, Material Handling Equipment, Labeling Machines, Plastic Welding Machines, Gas Welding Machines, Soldering iron, Agitation of Chemicals in Tanks, Aeration.
Technical Specification:
|
MODEL |
MAX. FLOW (Ltrs/min) |
MAX. VACUUM (In./mm Hg) |
MAX. PRESS. (PSIg) |
APPROX. Weight (kg) |
MOTOR HP |
APPROX Dimensions (mm) |
|
|
LAB-15 |
15 |
22" (554) |
25 |
3.0 |
1/20 |
175X110X150 |
|
|
LAB-25-S |
15 |
27" (680) |
35 |
5.5 |
1/16 |
220X110X150 |
|
|
LAB-25-P |
25 |
22" (554) |
25 |
5.5 |
1/16 |
220X110X150 |
|
|
LAB-25-AX |
15 |
27" (680) |
-- |
-- |
1/16 |
-- |
|
|
LAB-45 |
45 |
22" (554) |
35 |
7.0 |
1/8 |
200X125X200 |
|
|
LAB-45-CRP |
30 |
22" (554) |
10 |
7.0 |
1/8 |
220X150X220 |
|
|
LAB-75-S |
45 |
27" (680) |
55 |
12.5 |
1/4 |
300X130X200 |
|
|
LAB-75-P |
75 |
22" (554) |
40 |
12.5 |
1/4 |
300X130X200 |
|
|
LAB-75-CRP |
38 |
22" (554) |
10 |
-- |
1/4 |
-- |
|
